Professional model railroad detectors and occupancy sensors from Circuitron, Digitrax, and NCE. Block occupancy detectors, grade crossing sensors, transponding receivers, and rolling stock detection for automated signaling and layout control. Essential for DCC operations, computer control, and realistic railroad automation. Complement with DCC controllers and wiring components for complete layout infrastructure.
Train detection systems form the foundation of automated model railroad operations, enabling realistic signaling, computer control, and prototypical operating features that transform basic train running into sophisticated railroad simulations. This comprehensive collection features professional-grade block occupancy detectors, grade crossing sensors, transponding receivers, and specialized detection circuits from Circuitron Electronics, Digitrax, and NCE Corporation that provide reliable train presence information for signaling systems, dispatcher panels, and automated layout control. Whether you're implementing basic block detection for simple signaling, installing grade crossing automation with integrated flashers, building comprehensive occupancy detection for computer interface, or adding transponding capabilities for automatic train identification, these detection systems deliver the real-time train location information that enables the automated operations, realistic signaling, and computer control that separate basic layouts from sophisticated railroad simulations replicating prototype complexity.

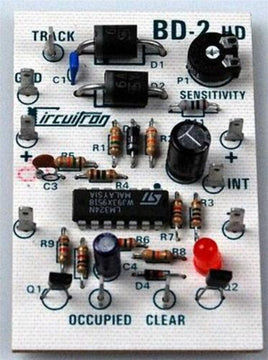

Circuitron has pioneered model railroad detection technology since the 1960s, developing the BD-1 and BD-2 block occupancy detectors that define industry standards for reliable train presence detection. The BD-1 opto-electronic detector uses infrared light beam technology detecting trains without requiring electrical connection to track, making it ideal for DC layouts, isolated detection blocks, and applications where current-sensing proves impractical. The BD-2 current-sensing detector monitors track current, detecting trains through their power consumption without requiring physical sensors between rails. The HD (Heavy Duty) versions of both detectors provide enhanced output capabilities for driving multiple signals or accessories from single detection points. These detectors work with both DC and DCC systems, providing versatile detection solutions across all control methods. The proven reliability and straightforward installation make Circuitron detectors the foundation of countless automated layout systems, from simple two-block signaling to complex CTC installations controlling dozens of signals.

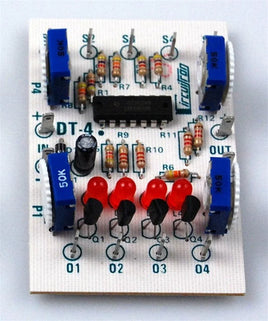

Grade crossing automation requires specialized detection identifying approaching trains and activating warning signals with proper timing, and Circuitron's DT and DF series detectors provide complete solutions for realistic crossing protection. The DT-1 and DT-2 grade crossing detectors sense approaching trains and provide outputs triggering flashers, gates, and bells with adjustable timing matching prototype operations. The DT-3 single-direction detection circuit optimizes performance for one-way track sections, while the DT-4 rolling stock detector identifies individual cars for specialized applications. The DF-1 Grade Crossing Detector with integrated flasher combines detection and signal control in single units, simplifying installations by eliminating separate flasher circuits. These specialized detectors demonstrate Circuitron's understanding that different detection applications demand different sensor technologies and output characteristics, providing purpose-built solutions rather than forcing general-purpose detectors to handle specialized tasks.
Digitrax occupancy detectors integrate seamlessly with LocoNet DCC systems, providing not only train presence information but also transponding capabilities enabling automatic locomotive identification and sophisticated computer control. The BXP88 LocoNet Occupancy Detector delivers eight detection sections with reversing capability, monitoring track occupancy while supporting transponding-equipped locomotives that report their addresses automatically. The BD4N provides four-block occupancy detection with LocoNet connectivity, enabling computer programs and dispatcher panels to monitor layout activity in real-time. The PM74 Power Manager combines power distribution with occupancy and transponding detection for four sub-districts, creating integrated solutions that simplify wiring while providing comprehensive detection capabilities. The RX4 Transponding Receiver adds transponding capability to existing BDL series detectors, upgrading older installations to support automatic train identification. These Digitrax detectors demonstrate how modern detection systems extend beyond simple presence sensing to provide the detailed train information that computer control and advanced operations demand.
NCE Corporation brings their user-friendly design philosophy to block detection with the BD20 detector providing straightforward occupancy sensing for NCE DCC systems and computer interface applications. The detector monitors track current, identifying occupied blocks and providing outputs for signals, panel indicators, and computer programs tracking train locations. The NCE approach emphasizes reliable detection with simple installation, making block detection accessible to modelers implementing their first automated signaling or computer control systems. The BD20 works within NCE's broader ecosystem of DCC components, integrating with command stations, boosters, and computer interfaces to create comprehensive layout control systems. This integration ensures components work together reliably, avoiding the compatibility issues that can plague mixed-manufacturer installations.
Understanding current-sensing versus opto-electronic detection technologies helps you select appropriate detectors for specific applications and layout configurations. Current-sensing detectors monitor track power consumption, detecting trains through the current their motors and lighting draw. This technology works excellently for powered locomotives and lighted passenger cars but may miss unpowered rolling stock and locomotives with power pickups on only one truck. Current-sensing requires no physical installation between rails, simplifying installation while providing reliable detection for most applications. Opto-electronic detectors use infrared light beams between rails, detecting any object breaking the beam regardless of whether it draws current. This technology detects unpowered cars, non-electrical equipment, and provides positive detection independent of electrical characteristics. However, opto-electronic detection requires installing sensors between rails and maintaining clean optical paths free from ballast and debris. Many sophisticated layouts use both technologies, employing current-sensing for general block detection and opto-electronic sensors for specialized applications requiring detection of unpowered equipment.
Realistic signaling systems depend on accurate block detection providing the train location information that determines signal aspects. Detectors monitor track occupancy in each signal block, with signals displaying red when blocks are occupied, yellow when the next block ahead is occupied, and green when the route is clear. This basic automatic block signaling (ABS) replicates prototype railroad safety systems, preventing trains from entering occupied blocks and creating the realistic signal progressions that characterize real railroads. More sophisticated signaling including approach lighting, distant signals, and interlocking systems build upon basic block detection, using multiple detectors per signal block to provide the detailed occupancy information these advanced systems require. The detectors in this collection provide the foundation for signaling systems ranging from simple two-block ABS to complex CTC installations controlling entire layouts through centralized dispatcher panels.
Realistic grade crossing protection requires detectors that sense approaching trains at appropriate distances, activate warning devices with proper timing, and deactivate signals after trains clear crossings. Circuitron's grade crossing detectors provide adjustable detection zones allowing you to set activation distances matching your layout's scale speeds and crossing locations. The detectors trigger flashers, gates, and bells as trains approach, maintaining activation while trains occupy crossings, then deactivating after trains clear with realistic timing. This automation eliminates the manual crossing activation that breaks operational realism, while the adjustable timing ensures crossings activate early enough to warn imaginary motorists without excessive advance warning that looks unrealistic. Grade crossing automation represents one of the most visible and satisfying detection applications, as the automatic flashers and gates respond to train movements without operator intervention, creating the dynamic layout activity that brings model railroads to life.
Modern layout automation relies on computer programs receiving real-time train location information from detection systems, enabling automatic route setting, collision prevention, and sophisticated operating scenarios impossible with manual control. Digitrax and NCE detectors provide computer interface capabilities through LocoNet and NCE cab bus connections, feeding occupancy information to programs like JMRI (Java Model Railroad Interface) that create dispatcher panels, automatic signal systems, and computer-controlled operations. These programs display layout track diagrams showing occupied blocks in real-time, allow dispatchers to set routes by clicking turnouts on screen, and can run trains automatically following timetables or responding to signal aspects. The detection systems provide the sensory input these programs require, transforming computers from simple throttles into comprehensive layout control systems managing multiple trains, setting routes, and operating signals automatically based on train positions.
Transponding technology extends detection beyond simple presence sensing to automatic locomotive identification, enabling computer programs to track specific trains rather than just knowing blocks are occupied. Digitrax transponding-equipped decoders report locomotive addresses when queried by transponding-capable detectors, allowing programs to identify which specific locomotive occupies each detection zone. This capability enables sophisticated features including automatic roster updates showing each locomotive's current location, collision prevention systems that know which trains are approaching each other, and automated operations where programs control specific trains through complex operating sequences. The RX4 Transponding Receiver adds this capability to existing detection systems, upgrading layouts to support automatic train identification without replacing existing detectors. Transponding represents the cutting edge of detection technology, providing the detailed train information that next-generation layout control systems require.
Successful detection system implementation requires careful planning during layout design, with detector locations, detection zones, and wiring considered alongside track plans and scenery designs. Position detectors to provide the train location information your signaling or automation systems require, with detection zones matching signal block boundaries for signaling applications or providing finer resolution for computer control. Plan wire routes before scenery construction, ensuring adequate access for detector installation and maintenance. Consider power requirements, as some detectors need separate power supplies while others draw from track power. Install detectors in accessible locations beneath layouts, avoiding areas where scenery or structures will block access for troubleshooting and adjustment. Test detection systems thoroughly before completing scenery, verifying reliable detection across all track sections and confirming proper integration with signals or computer systems. This proactive planning prevents the frustrating situations where completed scenery blocks access to malfunctioning detectors or where detection zones don't align properly with signal blocks.
Understanding common detection problems and their solutions prevents the frustration of unreliable automation and intermittent signaling. False detection—where detectors indicate occupancy without trains present—often results from dirty track creating current paths that current-sensing detectors interpret as train presence, requiring track cleaning and ensuring proper electrical isolation. Missed detection—where trains don't trigger detectors—suggests insufficient current draw for current-sensing detectors or obstructed light paths for opto-electronic sensors, requiring cleaning, adjusting sensitivity, or adding detection-enhancing components like resistor wheelsets. Intermittent detection indicates marginal situations where trains sometimes trigger detectors and sometimes don't, requiring sensitivity adjustment or addressing track cleanliness issues. For transponding problems, verify decoder programming, check LocoNet connections, and ensure transponding receivers are properly configured. Systematic troubleshooting using these guidelines usually identifies and resolves detection issues, restoring reliable automation.
Detection systems integrate with DCC command stations and controllers creating comprehensive layout control infrastructure supporting both manual operations and automated features. Digitrax detectors connect via LocoNet, feeding occupancy information to command stations, computer interfaces, and other LocoNet devices. NCE detectors integrate through NCE cab bus connections, providing similar capabilities within NCE systems. This integration allows detection information to control signals automatically, trigger sound effects as trains pass detection points, and provide computer programs with the train location data required for automated operations. The detection systems work alongside wiring components including terminal blocks and connectors that organize the complex wiring these systems require, creating maintainable installations that support troubleshooting and future expansion.
Circuitron Electronics pioneered model railroad detection technology in the 1960s, developing the BD-1 and BD-2 detectors that remain industry standards decades later. Digitrax advanced detection technology with LocoNet integration and transponding capabilities enabling automatic train identification. NCE Corporation brings user-friendly design to detection systems making automation accessible to modelers at all experience levels. These manufacturers understand model railroaders' requirements for reliable detection, straightforward installation, and integration with broader layout control systems, ensuring the detectors in this collection deliver the performance that automated operations and realistic signaling demand.
