The AN/TPY-2 radars are high-resolution, phased array, X-band radars designed and built specifically for the missile defense mission. The radar can be deployed in one of two modes: terminal or forward-based. In terminal mode, the TPY-2 radar is integrated with a THAAD system and serves as its primary sensor. This mode has a shorter range because the sensor is oriented upward to track the late stages of the missile track, enabling the THAAD’s capability to intercept both outside the atmosphere and once a reentry vehicle enters the atmosphere. In forward-based mode, the radar provides crucial sensor tracks of missiles in the boost/early midcourse phase to the GMD system. From these forward-based locations, the TPY-2 can detect and track missiles in their boost and early midcourse phases, determining information such as their speed and trajectory.
- Item No: 01059
- Item Name: M983 Tractor with AN/TPY-2 X Band Radar
- Bar Code: 9580208010595
- Scale: 1:35
- Item Type: Plastic Model Armor Kit
- Model Brief: Length: 563mm, Width: 103mm
- Total Parts: 580+
- Metal Parts: n/a
- Photo Etched Parts: 2 pcs
- Film Parts: n/a
- Resin Parts: n/a

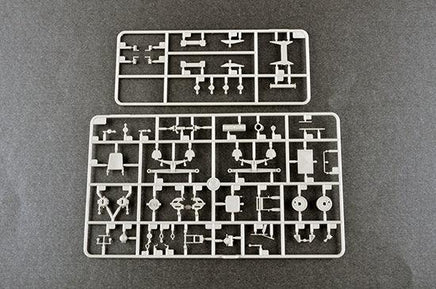

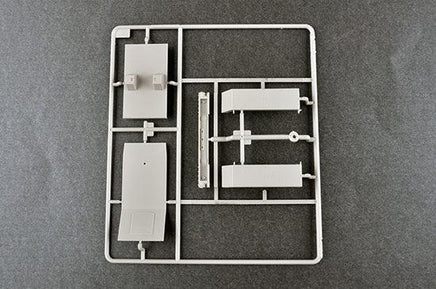

- Total Sprues: 18 sprues, cab, and tires
- Released Date: 2018-07
- More Features:
- Detailed multi-directional slide-molded cab.
- Full drive train assembly complete with engine transmission, differential housing, and suspension units.
- The main tires are hollow rubber with a very good tread pattern.
- The windshield and side windows are made of clear parts.
- Photo-etched parts included for added detail.
