Digitrax DZ126PS 1 Amp Z/N/HO Scale Decoder 5081

$25.85
Free CONUS Economy Shipping on All Orders $100.00 or More
*Expect shipment within 14 business days or up to 30 business days for orders not listed as back or pre-orders*
SKU: DTX5081
Try Lay-Buy at checkout. Minimum of 20% down and maximum 6 months "Lay Away" plan. Your product will be shipped after balance is paid. Pre-orders will ship after balance is paid in full and product becomes available. Select "PUT IT ON LAY-BUY' at checkout and spread out those payments. Terms and restrictions apply.
← Previous Product Next Product →

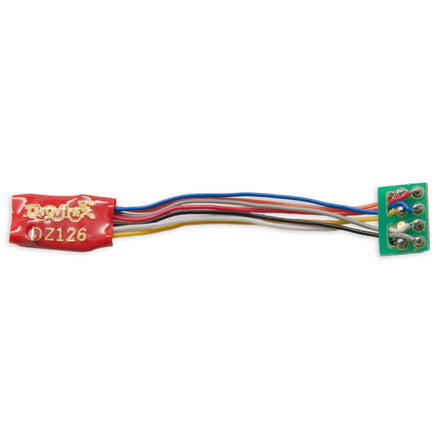

DZ126PS 1 Amp Z/N/HO Scale Decoder with DCC Medium Plug with 1 ‘ Harness

Fits Many Z, N and HO Scale Locomotives

  • Size: .455” x .369” x .126”
    11.56mm x 9.37mm x 3.2mm
  • Z, N and HO Scale
  • 1.0 Amp/1.5 Amps Peak
  • 2 FX3 Functions, 0.5 Amp
  • DCC Medium Plug with 1 ‘ Harness

FX3 Function outputs for prototypical lighting effects and on/off control:

  • Constant Brightness Lighting with directional or independent control.
  • Optimized selectable LED or incandescent lamp operation
  • Realistic Effects like Ditch lights, Mars lights, strobes, and many more
  • Configurable Pulse Function available on all function outputs.
  • FX3 & Standard Function Qualifiers operate functions based on direction,
    F0 on or off, direction and F0, and whether loco is moving.
  • Function Mapping for custom function setup.
  • Master Light Switch turns off all lights & functions with one keystroke.
  • Advanced Consist Function Controls.

Digitrax LocoMotion® System-Your locomotives look like the real thing.

  • The Digitrax LocoMotion System makes them run like the real thing, too!
  • Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution.
  • Torque Compensation.
  • 128 Speed Step operation (14 or 28 steps can also be used).
  • Momentum with acceleration and deceleration.
  • Normal Direction of Travel is user selectable.
  • Switching Speed feature for easier and faster access to yard speeds.
  • 3 Step Speed Tables set start, mid and max voltage for custom control.
  • 28 Step Speed Tables with 256 level resolution for precise control.
  • Program CVs using any Digitrax Compatible Control system without havingto buy any extra equipment.
  • Plug ‘N Play 8-pin Medium DCC plug design makes installation quick and easy.
  • 2 Digit and 4 Digit Addressing.
  • Basic, Advanced & UniVersal Consisting.
  • SuperSonic motor drive for silent operation.
  • Direct mode programming.
  • Decoder Reset CV with or without speed table reset.
  • Transponder Equipped ready for transponding on your Layout.
  • Motor Isolation Protection helps prevent damage to your decoder.
  • Automatic Analog Mode Conversion when running on DC layout.
  • Decoder Lock for individual programming of multiple decoders in one loco.
  • Digitrax “No Worries” Warranty.

Specifications:

  • Current Rating-Motor: 1.0 Amp/1.5 Amps Peak
  • Size: 0.455” x 0.369” x 0.126” (11.56mm x 9.37mm x 3.2mm)
  • Installation: DCC Medium Plug Short Harness
  • Function Outputs: 2
  • Function Type: FX3
  • Features: Series 6
  • Current Rating-Functions: 0.5 Amp for all functions
  • Original Release Date: 2014-03-14
