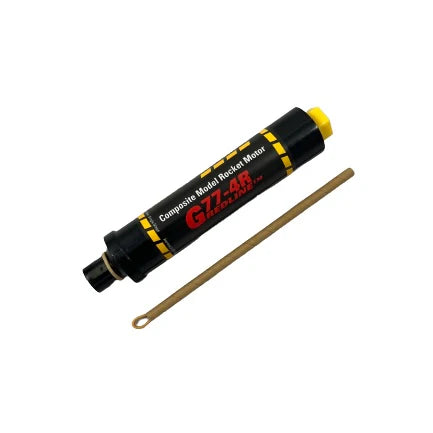

These high performance, composite propellant model rocket motors use the same family of solid propellant as NASA’s Space Shuttle Boosters, military missiles, sounding rockets, and NASA’s future SLS moon rocket. They utilize a patent pending high-strength polymer case and bulkhead, polymer nozzle and RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!

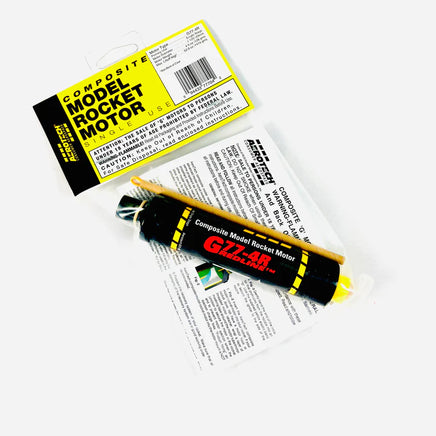

This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Jr. Initiator. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
Specifications:
- Motor Diameter: 1.125 inches (29mm)
- Casing Length: 4.875 inches (124mm)
- Total Impulse: 103 N-sec
- Average Thrust: 80.1 newtons
- Peak Thrust: 100.5 N-sec
- Thrust Duration: 1.28 seconds
- Delay Time: 4 seconds
- Propellant Weight: 59.1 grams
- Motor Weight: 122 grams
- Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors.
