HO Train Control Systems DP5 Decoder 1335

$38.93 ~~$39.95~~

Free CONUS Economy Shipping on All Orders $100.00 or More

*This is a product we must order from a distributor. Expect shipment within 14 business days or up to 30 business days for this product to come to MPM Hobbies. Products listed as back or pre-orders may take longer than 30 days. Distributor product availability may change without the knowledge of MPM Hobbies. Should this occur, we will notify you via email, text or phone call. Please read our "Shipping Policy" for details on mixed orders i.e orders containing both in-house and products we must order from the distributor.*

SKU: TCS1335

Qty

Try Lay-Buy at checkout. Minimum of 20% down and maximum 6 months "Lay Away" plan. Your product will be shipped after balance is paid. Pre-orders will ship after balance is paid in full and product becomes available. Select "PUT IT ON LAY-BUY' at checkout and spread out those payments. Terms and restrictions apply.

← Previous Product Next Product →

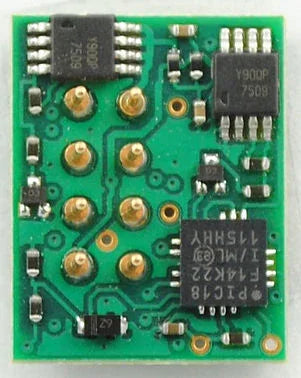

The DP5 is a HO-Scale direct-plug decoder designed for engines equipped with 8-pin NMRA sockets. By far one of the easiest decoders to install, the DP5 can be plugged into many locomotives with no effort. The DP5 has 5 available lighting functions, and has been tailored to work with Atlas Silver Series engines. This decoder will also fit many other engines with 8-pin NMRA sockets, including KATO and Athearn where additional lighting functions are needed. An excellent choice for engines with ditch lights!

Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum: Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible: Fully compatible with Airwire™ operation.
User-Loadable Speed Tables: Configure custom speed curves and set speed limits.

Specs:

Interface Type: Direct-Plug (8-Pin NMRA)
Dimensions (L x W x H): 0.509" x 0.636" x 0.104" or 12.92mm x 16.15mm x 2.64mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 5
Function Rating: 80 mA
12V Outputs: 5
