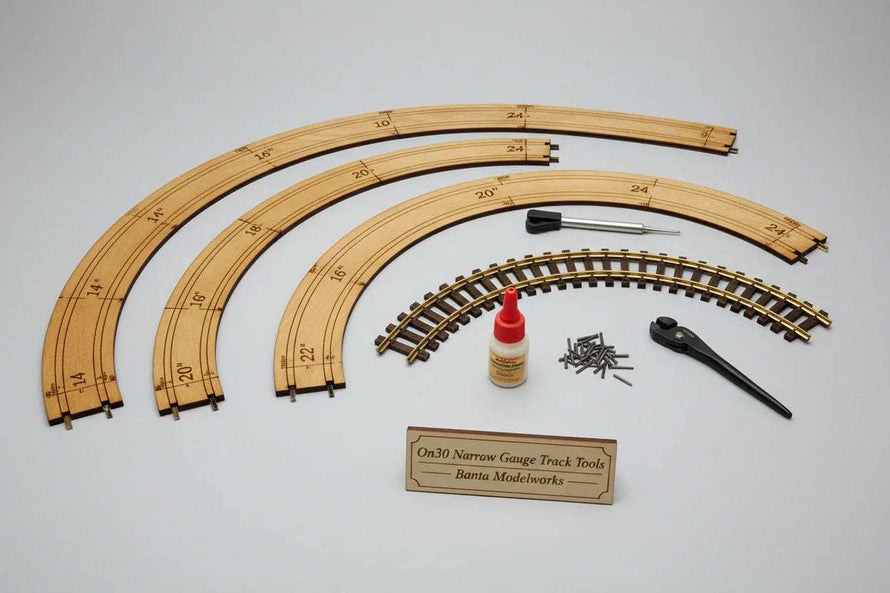

Achieve precision trackwork and professional-quality curves on your On30 narrow gauge layout with our comprehensive collection of track templates from Banta Modelworks, the trusted manufacturer of laser-cut layout tools designed specifically for narrow gauge modelers who demand accuracy, consistency, and the ability to create smooth flowing trackwork that captures the character of prototype narrow gauge railroads. These precision-engineered templates eliminate guesswork from track laying, ensuring consistent radius curves, proper alignment, and the flowing track geometry that defines successful narrow gauge layouts.
This complete collection provides track templates spanning fourteen different radius options from tight 14-inch curves suitable for mining spurs and industrial sidings through generous 40-inch radius curves perfect for mainline running and scenic route modeling. Each template features laser-cut construction from quality hardwood providing dimensional stability that won't warp or distort with humidity changes, precision-cut edges that ensure accurate rail positioning and consistent gauge throughout curves, clearly marked radius measurements for easy identification and organization, alignment guides that facilitate smooth transitions between straight and curved sections, and durable construction that withstands repeated use across multiple layout construction projects. The comprehensive radius range allows modelers to match prototype track curvature, create realistic operating characteristics for different railroad scenarios, and design track plans that balance operational requirements with scenic presentation.
The smaller radius templates from 14 inches through 22 inches serve essential roles in compact layouts, industrial switching districts, mining operations, and tight mountain railroading scenarios where sharp curves reflect prototype practice on narrow gauge lines threading through challenging terrain. These tighter curves allow maximum track length within limited space while creating the distinctive operating characteristics that define narrow gauge railroading, including reduced speeds, careful train handling, and the visual drama of locomotives and rolling stock negotiating sharp curves that would be impossible on standard gauge lines. Medium radius templates from 24 inches through 32 inches provide versatile options for general layout construction, offering curves gentle enough for smooth operation while tight enough to fit realistic track arrangements within typical layout room dimensions.
The larger radius templates from 34 inches through 40 inches enable sweeping mainline curves, scenic route modeling, and the graceful track geometry that allows higher operating speeds and longer trains while maintaining the narrow gauge character that distinguishes On30 modeling from standard gauge scales. These generous curves create the flowing track arrangements seen on prototype narrow gauge lines like the Denver and Rio Grande Western's scenic routes through Colorado's mountain passes, where engineering constraints demanded curves but traffic requirements necessitated the gentlest practical radii to maintain operational efficiency and allow longer trains to navigate mountain grades.
Using track templates streamlines the layout construction process by providing consistent reference guides for rail placement, eliminating the trial-and-error approach that often results in kinked curves and alignment problems, ensuring proper gauge maintenance throughout curved sections where hand-laid track can easily drift from correct dimensions, and allowing precise planning of track arrangements before committing to permanent installation. The templates work with all On30 track systems including hand-laid code 83 and code 70 rail, flexible track products, and custom trackwork incorporating switches and special trackwork. Pair these essential tools with scenery products from our On30 scenery collection to complete your narrow gauge modeling projects with authentic structures, details, and environmental elements that capture the distinctive character of prototype narrow gauge railroading in miniature form.
Track templates from Banta Modelworks transform track laying from a challenging trial-and-error process into a precise, repeatable procedure that produces professional results regardless of experience level. Understanding proper template usage techniques ensures accurate trackwork, smooth operation, and the satisfaction of building layouts with the flowing geometry and consistent standards that characterize prototype narrow gauge railroads. The investment in quality track templates pays dividends throughout the layout construction process and across multiple projects as these durable tools serve modelers for years of layout building.
Template selection begins with careful track planning that considers the operational requirements of your railroad, the space available for your layout, the prototype practices you wish to model, and the visual effect you want to achieve. Tighter radius curves create dramatic visual impact and allow maximum track length in limited space but restrict train length and operating speed, while broader curves permit longer trains and higher speeds but consume more layout real estate and may appear less characteristically narrow gauge. Many successful layouts employ a hierarchy of curve radii, using the tightest curves in industrial areas and branch line terminals where prototype practice justified sharp curves, medium radii for secondary main lines and connecting tracks, and the broadest available curves for primary main line routes where traffic density and operational requirements demanded the gentlest practical curvature.
Proper template usage involves securing the template firmly to the layout surface using weights, clamps, or temporary adhesive to prevent movement during rail placement, positioning rails against the template's guide edges to ensure consistent radius throughout the curve, checking gauge frequently as rails are spiked or glued to prevent the gradual gauge widening that can occur during installation, and using multiple templates of the same radius when laying extended curves to maintain consistent curvature without the repositioning errors that can introduce kinks and flat spots. The laser-cut precision of Banta templates ensures that curves laid using the same radius template will match perfectly, allowing seamless transitions and the smooth flowing trackwork that defines quality layout construction.
Transition curves between straight track and constant-radius curves represent one of the most challenging aspects of track geometry, as abrupt transitions create operational problems and unrealistic appearance. Professional practice employs easement curves where the radius gradually tightens from straight track into the constant-radius curve, creating smooth transitions that reduce lateral forces on rolling stock and eliminate the jerky motion that characterizes poorly designed track geometry. While dedicated easement templates exist, many modelers create effective transitions by carefully blending straight track into curved sections using visual judgment and test running equipment to verify smooth operation, adjusting rail position as needed to eliminate any binding or rough spots that indicate geometry problems.
Hand-laid track construction benefits enormously from template guidance, as the flexibility inherent in individual rail installation makes maintaining consistent curves challenging without reference guides. Templates ensure that both rails follow the same radius, that gauge remains constant throughout the curve, that rail joints occur at appropriate locations rather than at points of maximum stress, and that the overall curve flows smoothly without the flat spots or kinks that plague freehand track laying attempts. The ability to lay track with confidence that the geometry will support smooth operation eliminates much of the frustration that discourages modelers from attempting hand-laid trackwork.
Flexible track installation also benefits from template guidance despite the pre-formed nature of commercial flexible track products. Templates help achieve consistent radius when bending flexible track, prevent over-bending that can cause kinks or gauge problems, guide rail positioning during the critical initial pinning or gluing that establishes curve geometry, and ensure that multiple sections of flexible track align properly to create extended curves without discontinuities. The templates provide visual confirmation that the installed track matches the planned radius, catching errors before adhesives cure or ballast locks the track in position.
Track planning on paper or computer-aided design software becomes more accurate when actual template dimensions inform the planning process, as the physical templates reveal the true space requirements for curves of different radii and help identify potential clearance issues, grade transitions, and geometric conflicts before construction begins. Many modelers trace template outlines onto track plan drawings to verify that planned curves will fit available space and achieve desired operational characteristics, discovering potential problems during the planning phase when changes cost nothing rather than during construction when modifications require demolition and rebuilding.
Maintenance and storage of track templates ensures long service life and continued accuracy. Store templates flat or hanging to prevent warping, keep them in a dry environment to minimize dimensional changes from humidity fluctuations, mark each template clearly with its radius to facilitate quick identification during layout sessions, and inspect templates periodically for edge damage or wear that could compromise accuracy. Well-maintained templates serve modelers across multiple layout projects, making them one of the most cost-effective investments in layout construction tools.
Enhance your On30 track laying with complementary products from our store, including scenery and structures from our On30 scenery collection to complete your narrow gauge layout with authentic buildings, details, and environmental elements that capture the distinctive character of prototype narrow gauge railroading. Each Banta Modelworks track template represents an investment in layout quality that pays dividends through improved trackwork, reduced construction time, and the satisfaction of building layouts with professional-quality geometry that supports reliable operation and captures the flowing grace of well-designed narrow gauge railroads.
